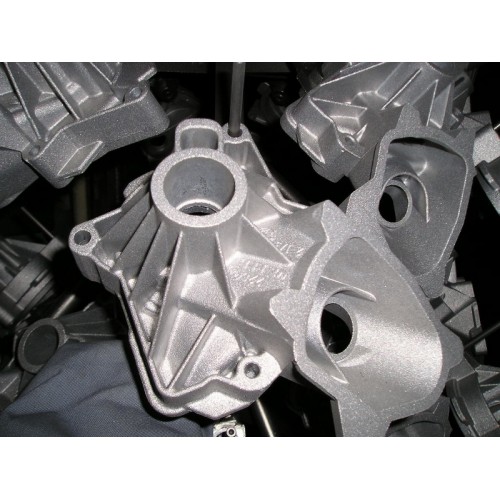

Spinner hanger shot blasting machine is designed typically for mixed loads of medium and large components, which often include fragile and sensitive parts that are more challenging during the tumbling process in bulk loads.

This type of machine is ideal for heavy and complex shaped workpieces. Parts can be weighed from 1 kg to 5000 kg or more, manufactured in smaller and medium series.

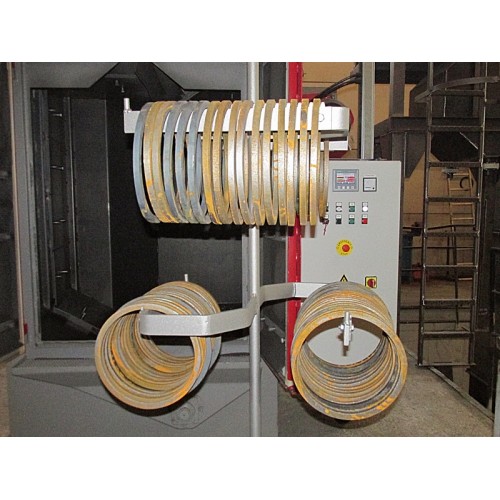

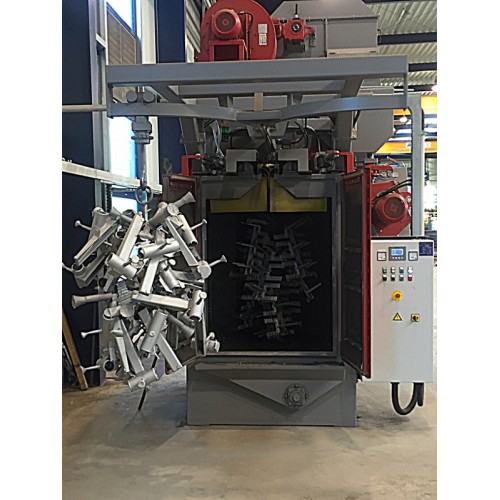

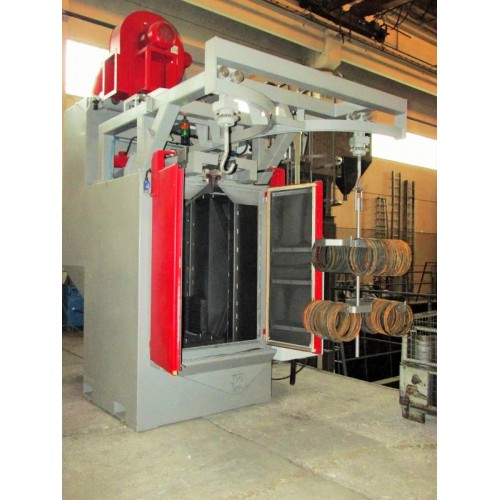

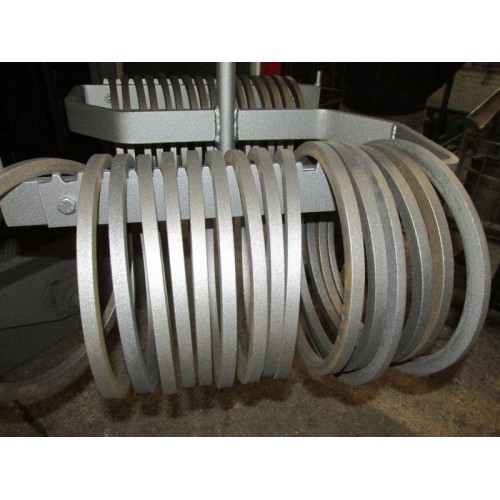

Then, treated workpieces are hung on the revolving hook and being transported to the shot blasting machine via I, Y or circular closed-loop conveyor. Revolving of treated objects in the jet of abrasives may provide efficient treatment of parts surface.

The machine’s housing is protected with resistant manganese steel or entirely made of manganese steel and additional protections of the most wear exposed areas.

The automatic and continuous abrasive handling and reclamation system for continued returning and cleaning of the shot blasting media, along with efficient blasting wheels made from wear-resistant materials had cause the shot spinner hanger shot blasting machine to be high efficiency.

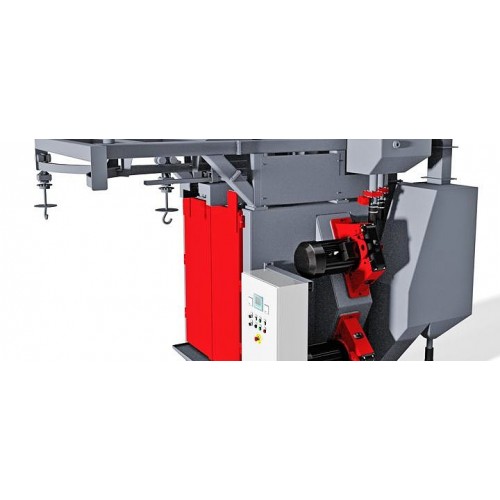

The shot blasting machine’s wheels can be upgraded to ir sm@rt wheel. With the combination of ir sm@rt valve, the operation of the shot blasting machine may be more effective and optimal.


Technical Data:

Machine Type VK-1000x1200-Ba
Max Hook Load Capacity (kg) 500
Max Diameter of Workpiece (mm) Ø 1000
Max Height of Workpiece (mm) 1200
Overhead Conveyor Type Y
Number of Throwing Wheels 2
Throwing Wheel Type ir-320
Power of Throwing Wheels (kW) 7.5
Dust Collector Type PF-2/60
Number of Filter Cartridges 2
Connected Load 29.3 kW / 59 A
System Net 3 / N / PE / 400 v; 50 Hz
