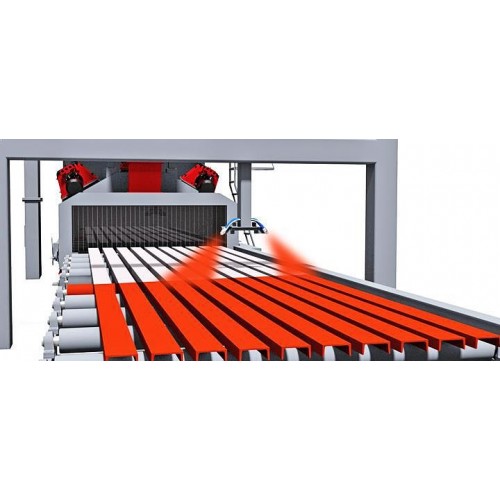

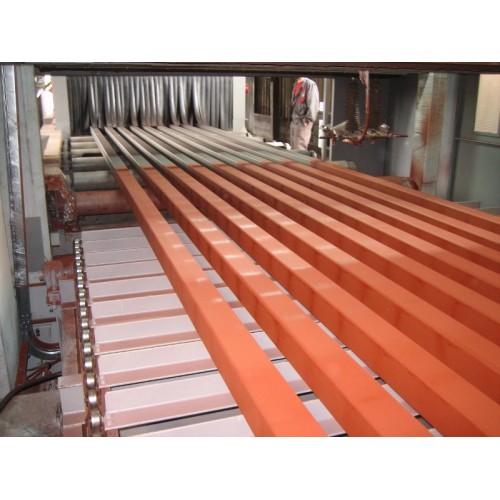

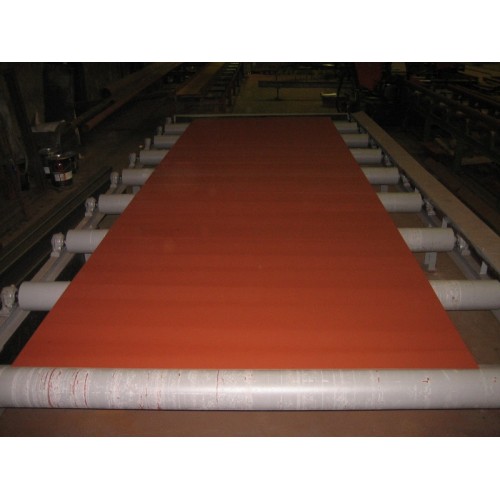

This machine is designed for protection of sheet metal and sections via a thin layer of basic coating in the storage & processing phase. It is also for basic colour application before the final colour application.

There are different types of machines that can be integrated into preservation line. Example of machines: Roller Conveyor Shot blasting Machine (P-type), Tube / Pipe & Solid Bars Shot Blasting Machine (PC type) and Continuous Shot Blasting Machines with Overhead Conveyor (VPP type).

The system is automated for rusty surface cleaning in continuous cleaning machine and basic colouring in automated colouring chamber. This has provided reasonable economic benefits with large quantities and quality protection.

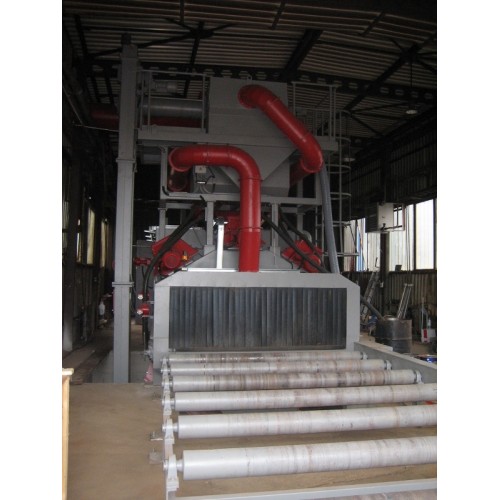

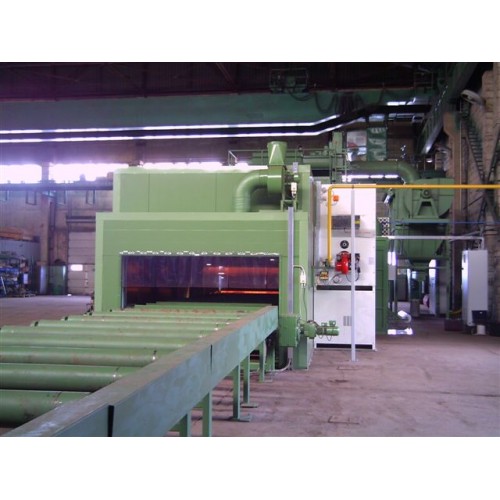

In general, preservation line includes hydraulic loading device, conveyor, pre-heating chamber, shot blasting machine, dust collector, basic colouring chamber, conveyor and a hydraulic unloading device.

The line may be incorporated into other lines when the technological needs to hit requirements. The combination of operations will be levelling, cutting, welding, final colouring, etc.

The shot blasting machine’s wheels can be upgraded to ir sm@rt wheel. With the combination of ir sm@rt valve, the operation of the shot blasting machine may be more effective and optimal.


Technical Data:

Machine Type P-1250 P-160 P-2000 P-2500 P-3000 P-3500 P-4000
Max Working Width for Plates (mm) 1250 1600 2000 2500 3000 3000 3000
Max Working Width for Profiles (mm) 800 1200 1600 1800 2000 2000 2000
Passing Height (mm) 500 450 450 450 450 500 500
Passing Speed (m/min) 0.5-4 0.5-4 0.4-2.4 0.4-2.4 0.4-2.4 1-6 1-6
Total Consumption of Electrical Power (kW) 130 150 250 280 310 500 600
Consumption of Heat Energy (kW) 290 410 520 640 760 1800 2300
Exhausten Air Quantity (m3/h) 18000 26000 34000 38000 42000 60000 75000
