Description:

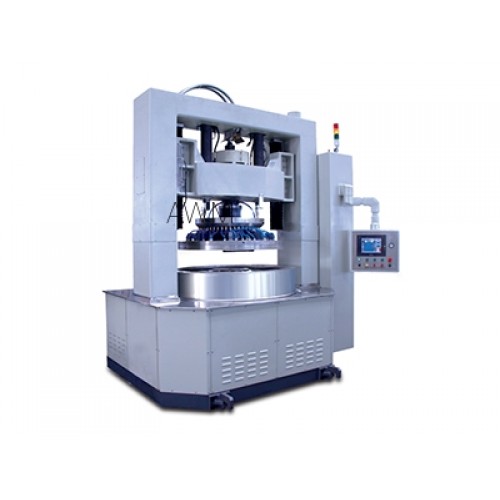

This machine is designed for grinding and polishing both sides of the parallel surface of thin metal and hard brittle non-metal parts.
It uses a Gantry structure with good stability and strong rigidity. The maximum pressure withstood by the machine with a double oil cylinder is 1500 kg.
The double oil cylinder is used to control the pressure by the electro-hydraulic proportional valve. The upper tray adopts with 304 stainless steel which is strong in corrosion resistance.
The cooling-heating structure which is in charge of controlling the surface temperature is equipped are both of the upper and lower plates.
The overall speed can be matched and adjusted with the speed of the sun gear, inner gear, upper plates, and lower plates.
The machine has a good compact in size as saving in space.
Technical Data:
| Machine Type | YH2M8195 |
| Size of Upper Plate (OD x ID x T) (mm) | φ1070 × φ495 × φ45 |
| Size of Lower Plate (OD x ID x T) (mm) | φ1070 × φ495 × φ45 |
| Size of Dressing Wheel (4 pcs) | Thickness=δ=20 (diamond modify wheel=δ=25) |
| Pin Gear | OD:φ327.5mm ，Z=64 |
| Min Thickness of Workpiece | 0.6 |
| Max Size of Workpiece | φ280 (diagonal) |
| The Precision of Processed Piece | The precision of processed piece: single flatness and parallelism are within 0.006mm, the whole workpiece is within 0.008mm. (workpiece with dia 50mm) |
| The Roughness of Workpiece Surface | no larger than Ra0.15, polishing workpiece no larger than Ra0.125 |
| Flatness of Upper & Lower Lapping Plate | 0.035 |
| Vibration fo Lower Lapping Plate | 0.03 |
| The Lower Grinding Disc Speed (rpm) | 10-80 |
| The Upper Grinding Disc Speed (rpm) | 8-50 |
| The Sun Wheel Speed (rpm) | 5-35 |
| Gear Speed (rpm) | 3-35 |
| The Motor of Lower Plate | 15 kW, rated speed 1440 rpm |
| The Motor of Upper Plate | 11 kW, rated speed 1440 rpm |
| The Motor of Sun Wheel & Inner Gear | 3 kW, rated speed 1430 rpm |
| Overall Dimension (L x W x H) (mm) | 2500 x 2000 x 3000 |
| Total Weight (kg) | 9000 |
