Description:

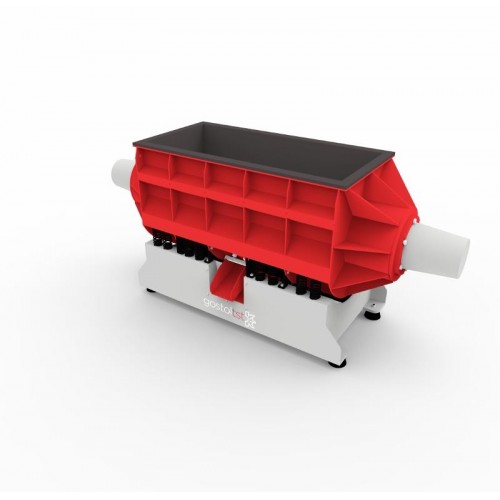

This series of machine has equipped with options for loading and some additional components which can be completely automated. The machine itself requires the minimum presence of an operator.
Formed abrasives like plastic media, ceramic media, porcelain media may perform well with this type of machine. They give good treatment on long and wide workpieces.
All machines are designed and made according to the European Standards to avail of all the requirements.
Technical Data:
| Machine Type |
Gross Volume (lt) |
PU Thickness (mm) |
Engine Power (kW) |
Voltage (3 phase) |
Operating Speed (rpm) |
Weight (kg) |
| VL 15 |
15 |
15-20 |
0.37 |
380/50 |
1500 |
65 |
| VL 50 |
50 |
15-20 |
0.55 |
380/50 |
1500 |
150 |
| VL 100 |
100 |
15-20 |
1.1 |
380/50 |
1500 |
300 |
| VL 200 |
200 |
15-20 |
1.5 |
380/50 |
1500 |
510 |
| VL 300 |
300 |
15-20 |
2.2 |
380/50 |
1500 |
710 |
| VL 500 |
500 |
20-25 |
5.5 |
380/50 |
1500 |
1060 |
| VL 800 |
800 |
20-25 |
2 x 3.0 |
380/50 |
1500 |
1400 |
| VL 1000 |
1000 |
20-25 |
2 x 5.5 |
380/50 |
1500 |
2120 |
| VL 1600 |
1600 |
25-30 |
2 x 7.5 |
380/50 |
1500 |
2690 |
| VL 2200 |
2200 |
25-30 |
2 x 7.5 |
380/50 |
1500 |
3250 |

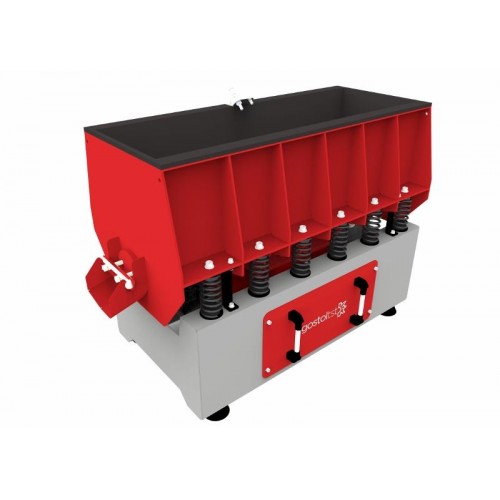

| VLO 450 |
450 |
15-25 |
3 |
380/50 |
1500 |
560 |
| Machine Type |
VL 15 |
VL 50 |
VL 100 |
VL 200 |
| Gross Volume (lt) |
15 |
50 |
100 |
200 |
| PU Thickness (mm) |
15-20 |
15-20 |
15-20 |
15-20 |
| Engine Power (kW) |
0.37 |
0.55 |
1.1 |
1.5 |
| Voltage (3 phase) |
380/50 |
380/50 |
380/50 |
380/50 |
| Operating Speed (rpm) |
1500 |
1500 |
1500 |
1500 |
| Weight (kg) |
65 |
150 |
300 |
510 |
| Machine Type |
VL 300 |
VL 500 |
VL 800 |
VL 1000 |
| Gross Volume (lt) |
300 |
500 |
800 |
1000 |
| PU Thickness (mm) |
15-20 |
20-25 |
20-25 |
20-25 |
| Engine Power (kW) |
2.2 |
5.5 |
2 x 3.0 |
2 x 5.5 |
| Voltage (3 phase) |
380/50 |
380/50 |
380/50 |
380/50 |
| Operating Speed (rpm) |
1500 |
1500 |
1500 |
1500 |
| Weight (kg) |
710 |
1060 |
1400 |
2120 |
| Machine Type |
VL 1600 |
VL 2200 |
VLO 450 |
| Gross Volume (lt) |
1600 |
2200 |
450 |
| PU Thickness (mm) |
25-30 |
25-30 |
15-25 |
| Engine Power (kW) |
2 x 7.5 |
2 x 7.5 |
3 |
| Voltage (3 phase) |
380/50 |
380/50 |
380/50 |
| Operating Speed (rpm) |
1500 |
1500 |
1500 |
| Weight (kg) |
2690 |
3250 |
560 |
