Description:
This machine is designed for handling welded constructions of complicated forms that weighing from 25 to more than 1000 kg, manufactured in small and medium series.
It is for heavy and complex shaped workpieces: casts, welded constructions, forged and pressed parts, remodelling cold or hot and of various complicated forms, steel bottles, springs, etc.
This type of machine is mostly for continuous blast cleaning, desanding and decoring in the die-cast industry as well as descaling, derusting and reconditioning in the metalworking industry.

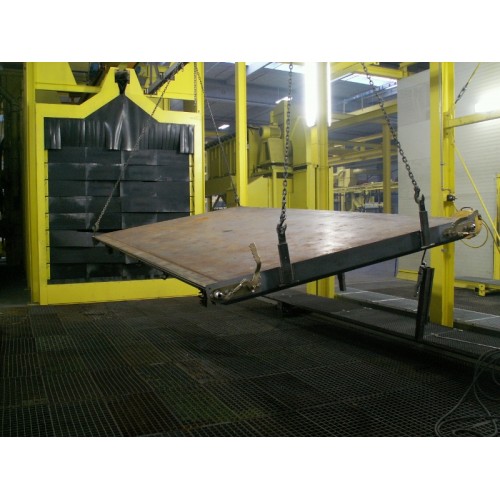

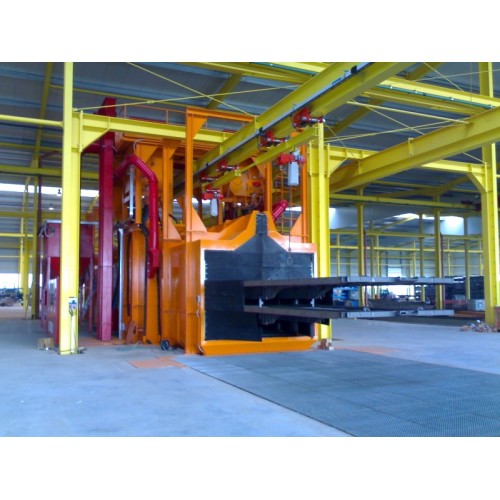

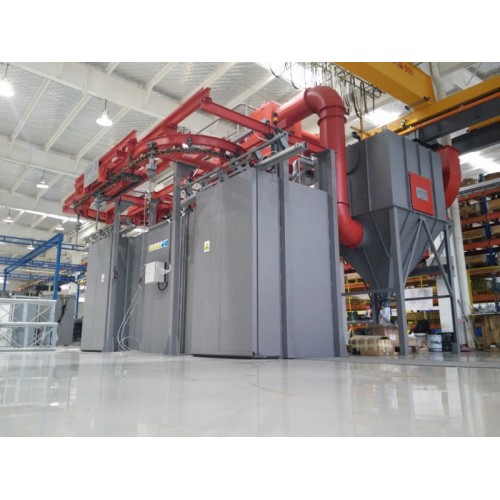

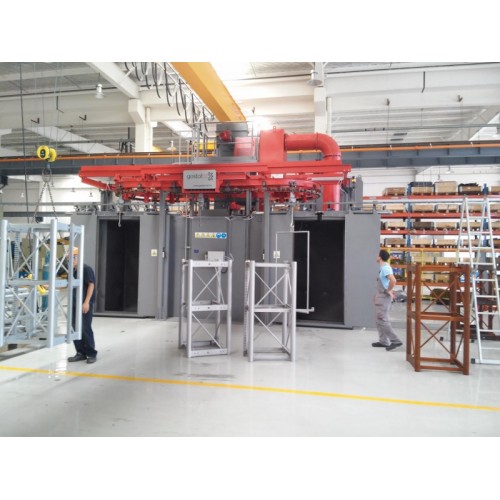

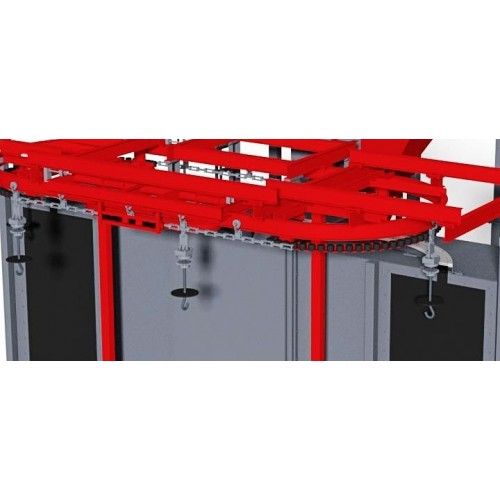

Treated workpieces are hung individually on hooks on an overhead conveyor individually. The overhead conveyor will then enter the shot blasting machine.
The process of shot blasting happens with treated objects moving through numerous jets of abrasive. Blasting wheels are inserted at various angles due to the direction of the movement that provides the efficient treatment.
The machine housing is protected with wear-resistant manganese steel. High efficiency of the shot blasting machine is provided by the system for continued returning and cleaning of the abrasive, along with efficient throwing wheels made from wear-resistant materials.
There are rubber screens to keep the abrasive inside the shot blasting machine in the entry chamber and exit cleaning chamber.
Needs and specifications of customers like shot blasting machine’s size, number, and power of throwing wheels, type and course of the hanging conveyor, capacity and number of hooks and frequency regulation of wheel’s revolutions can be customized.
The shot blasting machine’s wheels can be upgraded to ir sm@rt wheel. With the combination of ir sm@rt valve, the operation of the shot blasting machine may be more effective and optimal.
Technical Data:
Machine Type | VPP-300x600 | VPP-500x1200 | VPP-800x2000 | VPP-1000x2500 | VPP-1200x3000 |
Max Workpiece Dimensions ø x b (mm) | 300 x 600 | 500 x 1200 | 800 x 2000 | 1000 x 2500 | 1200 x 3000 |
Number of Wheels | 4 | 8 | 12 | 12 | 12 |
Wheel Motor Power (kW) | 7.5 | 7.5 | 11 | 11 | 11 |
Total Installed Power (kW) | 41 | 72 | 143 | 147 | 157 |
Exhausted Air Quantity (m3/h) | 6000 | 12000 | 18000 | 22000 | 25000 |
Compressed Air Connection (inch) | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 |
Max Height (mm) | 4700 | 5900 | 6700 | 7200 | 7700 |
Max Width (mm) | 4200 | 5100 | 5900 | 6100 | 6300 |
Max Length (mm) | 5000 | 8500 | 8500 | 10500 | 10500 |
Length of Foundations (mm) | without foundations | 11500s | 11500 | 13500 | 13500 |
Width of Foundations (mm) | without foundations | 5000 | 5800 | 6000 | 6200 |
Depth of Foundations (mm) | without foundations | 1500 | 1750 | 1750 | 1750 |
